Available in 3 colors
Euro 5 standard. C02 emissions
Wood floor anti-slip
2-YEAR WARRANTY ON PARTS AND LABOUR, UNLIMITED KILOMETRAGE
AIXAM ASSISTANCE : 2-YEAR ROADSIDE ASSISTANCE PLAN. VEHICLES NEARLY 100% RECYCLABLE.
Vehicles certified under European Directive 168/2013 UE
| Engine | Diesel |
|---|---|
| Configuration | front, transverse |
| Engine size (cm3) | 479 cm3 |
| Number of cylinders and position | 2, inline |
| Fuel supply and emission control | injection and combustion chambers |
| Cooling system | Liquid |
| Maximum power kW CE (HP at …. rpm) | 6 kW (8,15 CV at 3200 tr/min) |
| Torque (Nm / rpm) | 21 Nm à 2500 rpm |
| Maximum load engine speed (rpm) | 3200 rpm |
| Fuel | Diesel |
| Alternator (W) | 12V/ 40A |
| Battery | 12V/ 41 Ah |
| Administrative power (France) | 1 HP |
| Transmission | automatic via regulator |
|---|---|
| Driving wheels | Drive |
| Transmission | 1 forward gear+neutral+reverse gear |
| Braking system | 4-wheel cross-action double-circuit brakes with limiter and automatic compensation for brake-padwear |
|---|---|
| Front brake disk diameter (mm) | 220 |
| Rear brake drum diameter (mm) | 160 |
| Type of suspension | Hi-gain elastic spring suspension and double-action shock absorbers |
|---|---|
| Front suspension | Triangular pseudo-MacPherson type independent wheel suspension with coil springs |
| Rear suspension | independent wheels, balance rods, coil springs |
| Tyres size | 145/70R13 |
|---|
| Body | ABS acrylic body on aluminium frame |
|---|---|
| Rack-and-pinion steering, turning radius (m) | 4 |
| Seating | 2 |
| Lenght | 3000 |
|---|---|
| Width | 1500 |
| Wheelbase | 2252 |
| Front track | 1345 |
| Rear track | 1284 |
| Authorised gross weight | 842 |
|---|---|
| Payload * | 327 |
| Towing capacity | 212 |
| Maximum speed (kph) | 45 |
|---|---|
| Fuel consumption per 100 km (litres) | 3.1 |
| Fuel tank capacity (litres) | 24 |
| Range (km) | 500 |
| CO2 emissions (g/km) | 80 |
| Adjustable instrument panel backlighting |
| Brake pad wear audible indicator |
| Cream metre background |
| D-N-R Display of gearshift position |
| Digital clock |
| Digital total trip and partial trip odometer |
| Fuel (or energy) gauge with warning light |
Indicator lamps Right and left turning indicators, rear fog lights, parking lights, emergency flasher, headlights, preheating, Neutral gear |
| Service due indicator |
| Speedometer and tachometer needles |
Warning indicator lamps Battery charge, brake fluid level, hand brake, oil pressure, water temperature |
| 2 position day/night rear-view mirror |
| Automatic activation of hazard lights on sudden braking |
| Circular air vents (two) mounted on dashboard |
| Front 3-speed parallelogram wipers (1 intermittent speed) |
| Front bumper with integrate “bull bars” |
| Front seat belt reel assembly |
| Headlights on audible warning |
| Hi-power, 3-speed heater-defroster-fan |
| Hi-power, halogen headlights |
| Ignition locked if in gear |
| Laminated windscreen |
| LED running lamps |
| Rear fog lamps (2) |
| Reinforced doors |
| Reversing lights |
| Steering lock |
| Ultra-smooth gear-shift |
| Windscreen wash with automatic wiping |
| 12 V socket |
| Automobile type external door handles |
| Centralising locking |
| Driver and passenger sun visors with card holder |
| Engine compartment noise reduction |
| Interior lighting |
| Metallic colour |
| Rear glass panel |
| Rubber mat on cab floor |
| Single key for all doors, ignition and fuel tank |
| Tinted windows |

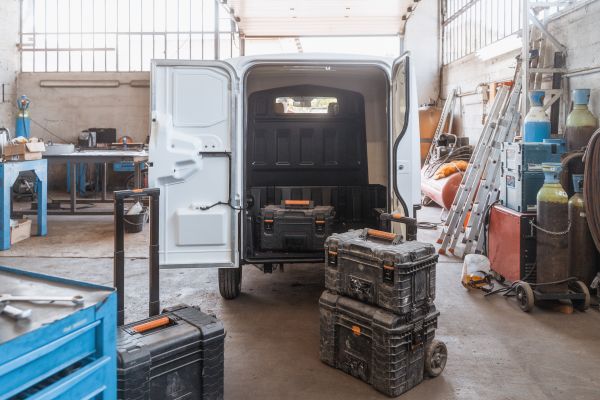

| 2.8m3 loading volume for the van |
| Anti-slip wooden floor for the loading zone |
| Glove box with cup and change holders |
| Lashing rings (four) in loading area |
| Low loading height (van and box under drop side) |
| Storage compartment between seats + on floor + in both doors |
| 145/70R13 Steel wheel rims |
| Flat-tyre aerosol inflator/repair kit |
| Hub caps |
| Balls slides for driver's seat |
| Headrests |
| Factory-installed radio |
| Rearview camera |

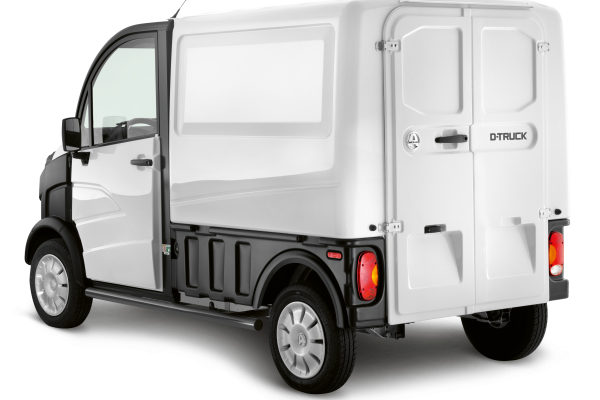

| Rear protection bars |

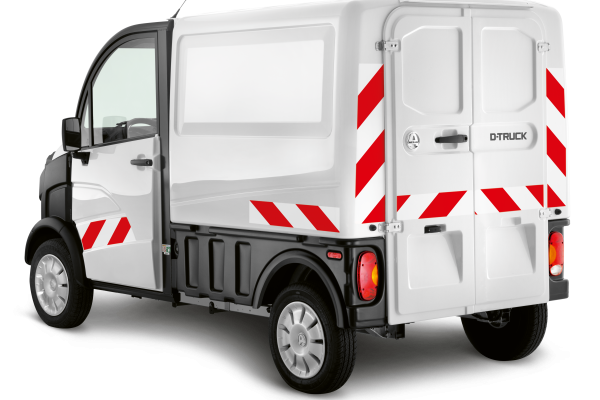

| Reflecting tapes class 1 |
| Reflecting tapes class 2 |
| Reverse bipper |
| Side protection bars |

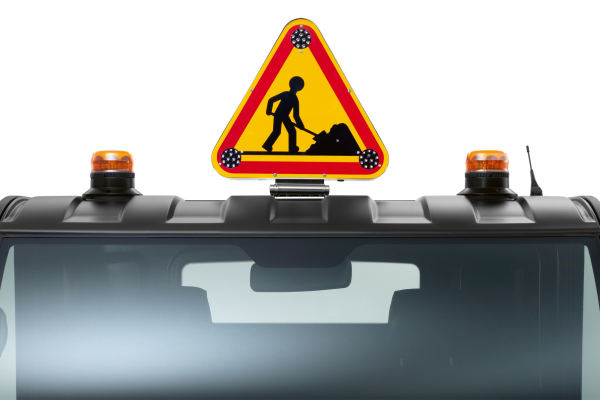

| Warning triangle + 2 beacon lights |
| Electric windows |
| Glazed rear door |
| Trailer hitch |
| Spare wheel |
| MP3/RDS/USB radio without CD player |
| These prices include : - shipping, - vehicle preparation, - labour for the first 1,000 km service, - the 2-year roadside assistance plan. |
These prices do not include : - vehicle registration fees and plates, - a full tank of fuel (combustion engine only)and services. |
| Maximum total cost of fees : 190 € Incl. Tax, for vehicles not requiring a driving licence, 300 € Incl. Tax,for vehicles requiring a driving licence (depending on vehicle registration fees in your department). |
